LM ArcWave MK4 / B5 1.8T Ignition Harness Upgrade – Deutsch Serviceable

Serviceable Deutsch Conversion – Permanent Repair Solution

If you own a MK4 or B5 1.8T, you’ve seen it before — cracked insulation, brittle wiring at the valve cover, random misfires, and coil connectors that fall apart in your hand. The factory ignition harness simply doesn’t age well under heat.

This kit is designed to permanently eliminate that failure point.

Instead of replacing the entire engine harness or installing temporary pigtail repairs, this system allows you to remove the damaged section once and convert it to a clean, serviceable Deutsch connection. From that point forward, the ignition harness can be disconnected quickly and reliably whenever needed.

This is not a patch repair. It’s a long-term upgrade.

Why This Kit Exists

The OE 1.8T coil harness becomes brittle over time due to constant heat cycling. The insulation cracks, copper becomes exposed, and misfires begin. Many solutions involve butt connectors and basic pigtails that still leave the harness vulnerable.

This upgrade:

• Removes the damaged factory section

• Adds a sealed Deutsch DT connector

• Installs brand new coil pack connectors

• Protects the wiring in high-temp mesh loom

• Creates a clean, professional, serviceable ignition system

Cut it once. Service it forever.

Features

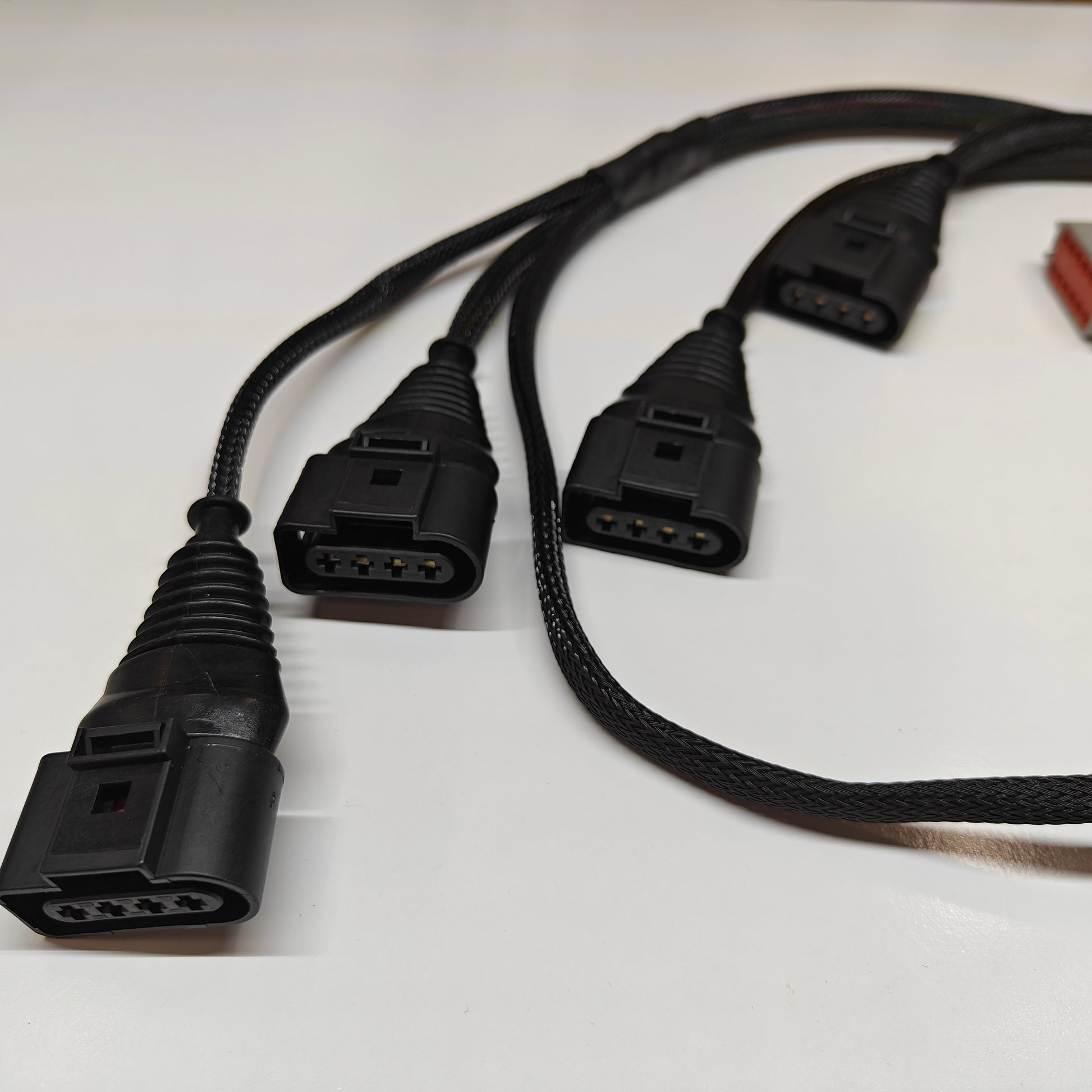

• Brand new OE-style ignition coil connectors with integrated strain relief

• High-quality automotive-grade wiring

• Sealed Deutsch DT series connector system

• Integrated ground eyelet

• High-temperature braided mesh loom for abrasion and heat resistance

• Proper routing length for MK4/B5 1.8T applications

• Clean, OEM+ under-hood appearance

• Designed specifically for longitudinal and transverse 1.8T platforms

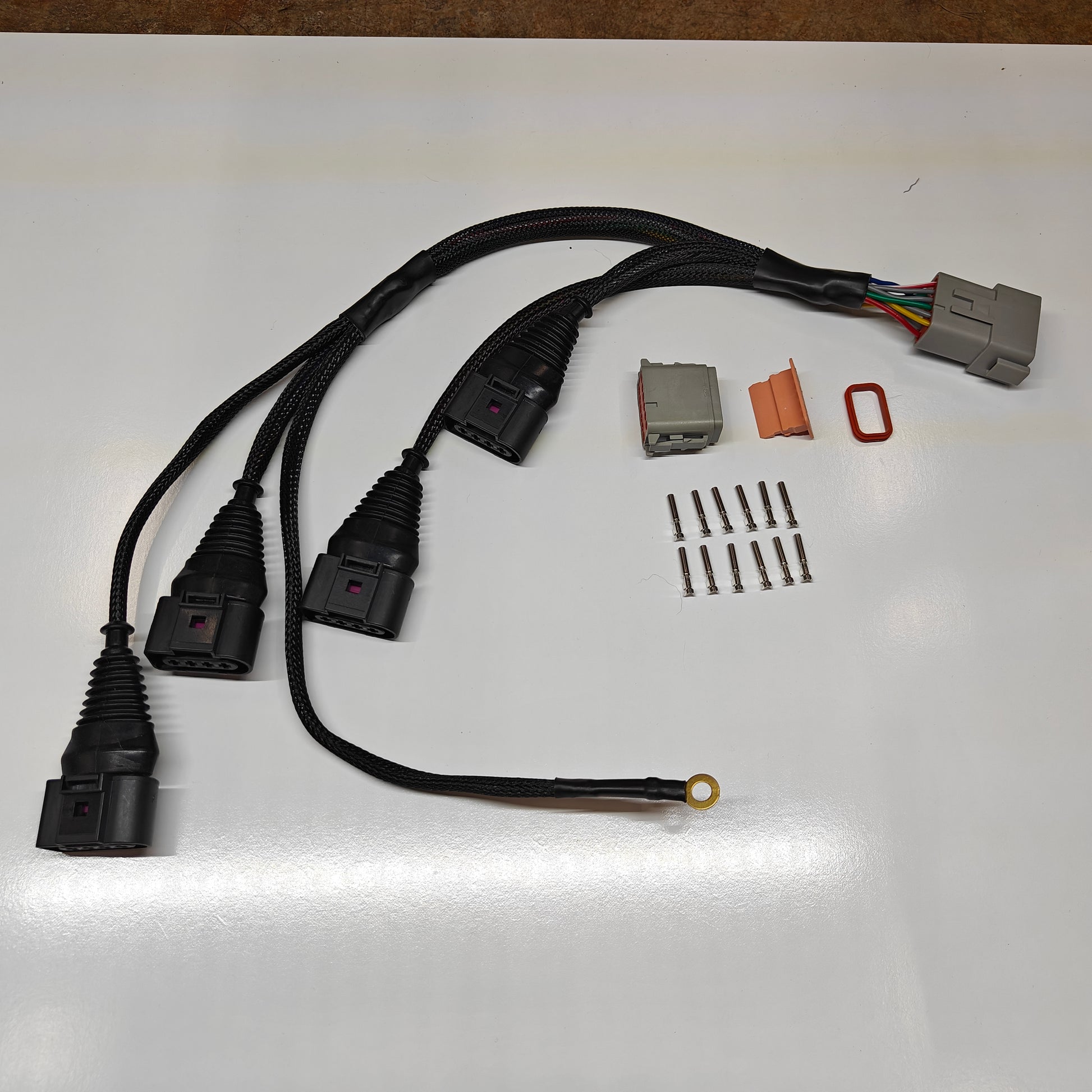

What’s Included

• Complete 4-coil ignition harness assembly

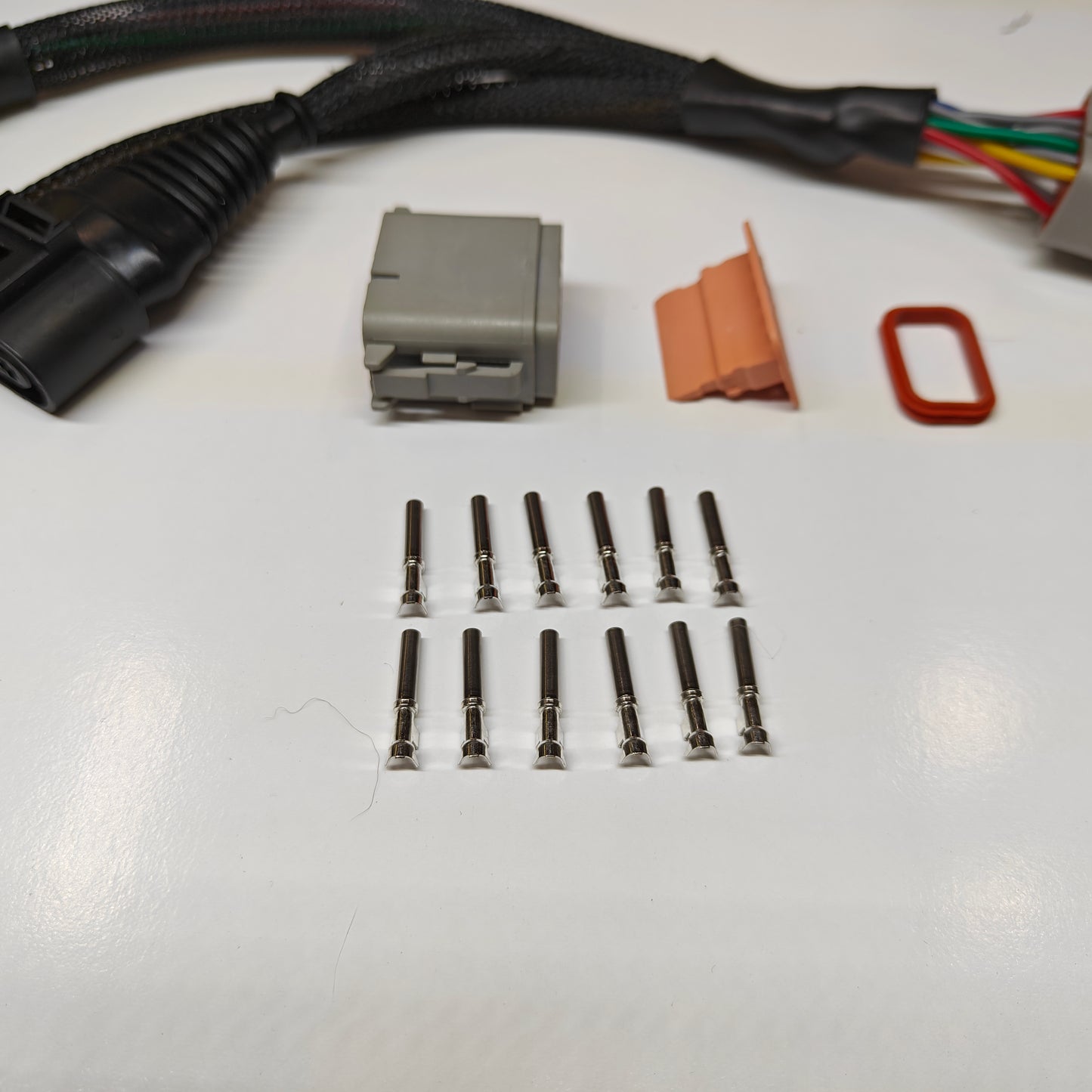

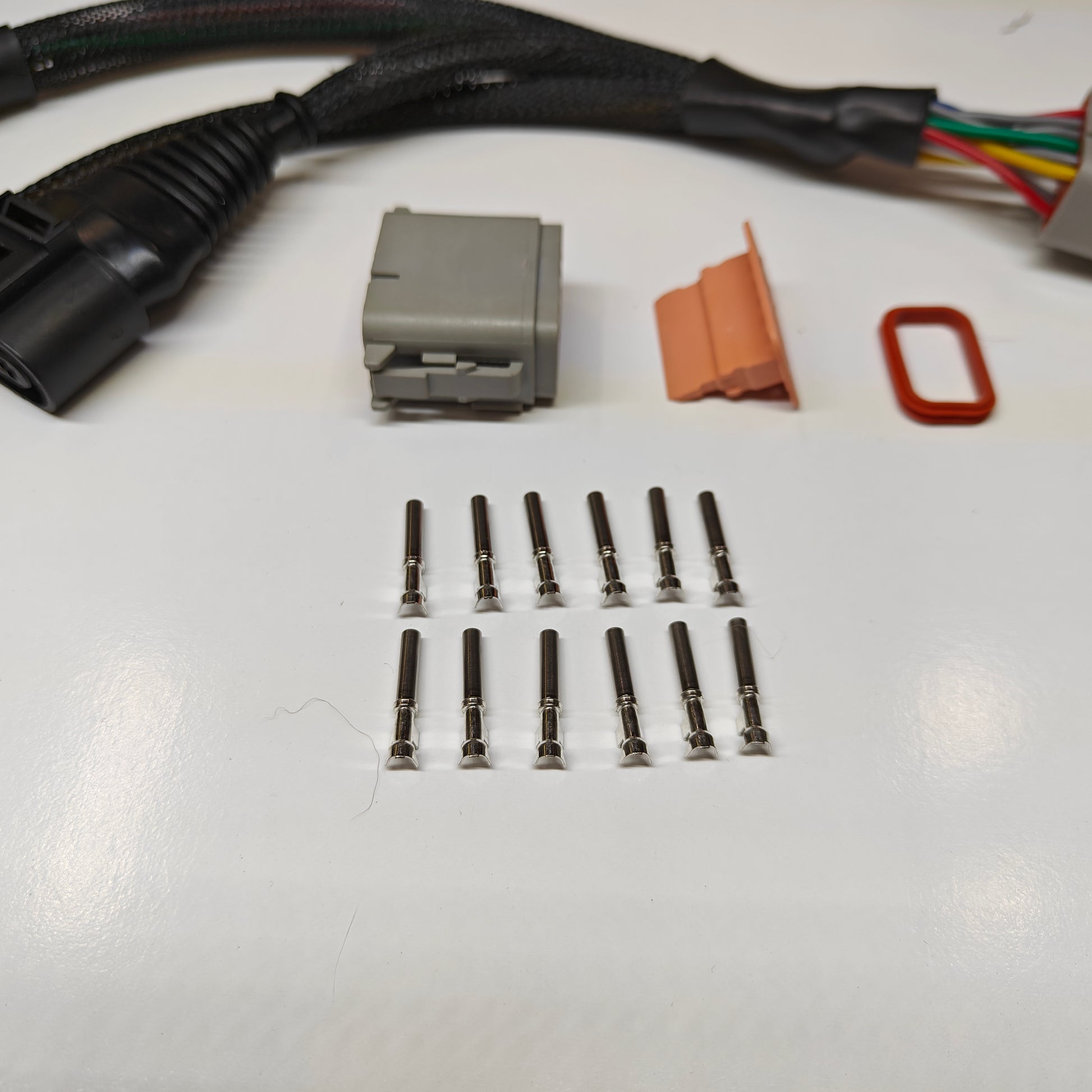

• Deutsch connector housing

• Wedge lock

• Seals

• Terminals/pins

• Integrated ground eyelet lead

• Extra wiring/connectors to convert a 10-wire loom to the 12-wire connector

Everything required to convert the factory harness to a serviceable connection point.

Installation Overview

Installation requires cutting the factory ignition harness at a clean section and terminating it into the supplied Deutsch connector. Once installed, the coil harness becomes fully removable via the sealed disconnect.

Professional installation recommended if you are not comfortable with automotive wiring.

We offer installation services for this kit as well. $100- Installation

Fitment

• Volkswagen MK4 1.8T

• Audi B5 1.8T
  (Transverse and longitudinal applications)

If unsure about compatibility, verify engine code prior to ordering.

Ideal For

• High-mileage 1.8T vehicles

• Big turbo builds

• Engine bay refresh projects

• Engine swaps

• Track or performance cars

• Anyone tired of chasing ignition-related misfires

The Result

• Eliminates brittle factory wiring at the valve cover

• Prevents future insulation cracking

• Improves reliability

• Simplifies future service

• Cleans up engine bay wiring

This kit transforms one of the most common 1.8T failure points into a durable, professional-grade solution.

Built for reliability. Designed to last.
